Why Manufacturers Adopt Controlled Industrial Ultrasonic Cleaning Processes
In precision manufacturing and industrial maintenance, consistent contamination removal has become a core part of process control. Traditional manual cleaning and basic ultrasonic cleaning equipment often fail to deliver repeatable results, especially for heavy, large, and high-precision workpieces. Modern production facilities rely on reliable industrial ultrasonic cleaning machine solutions to standardize post-machining and post-assembly cleaning workflows.
Manual loading and unstable immersion operations create inconsistent cavitation distribution, leading to uneven cleaning, part surface damage, and increased rework rates. To solve these pain points, the TS-UD Series dynamic ultrasonic cleaner integrates an automatic lift system and optional oil separation functions, delivering standardized, low-variability cleaning for mainstream industrial scenarios.
Core Drawbacks of Manual Ultrasonic Cleaning Operations
Most entry-level cleaning equipment relies on manual basket placement and artificial immersion, which introduces uncontrollable variables in mass production. These variables directly compromise cleaning consistency and part safety for industrial applications.
- Unstable immersion parameters: Differences in manual placement speed, depth, and position disrupt uniform ultrasonic cavitation
- Part collision risks: Manual handling causes scratches, deformation, or structural damage to precision and heavy components
- Poor repeatability: Cleaning results vary by operator, failing to meet standardized production quality standards
- Equipment wear acceleration: Direct placement of heavy workpieces on tank bottoms increases structural stress and damages ultrasonic transducers
These issues are particularly prominent in ultrasonic cleaning for CNC parts, ultrasonic cleaning for automotive components, and high-precision mold maintenance scenarios that require zero-defect surface treatment.
Automatic Lift System: Standardizing Industrial Cleaning Workflows

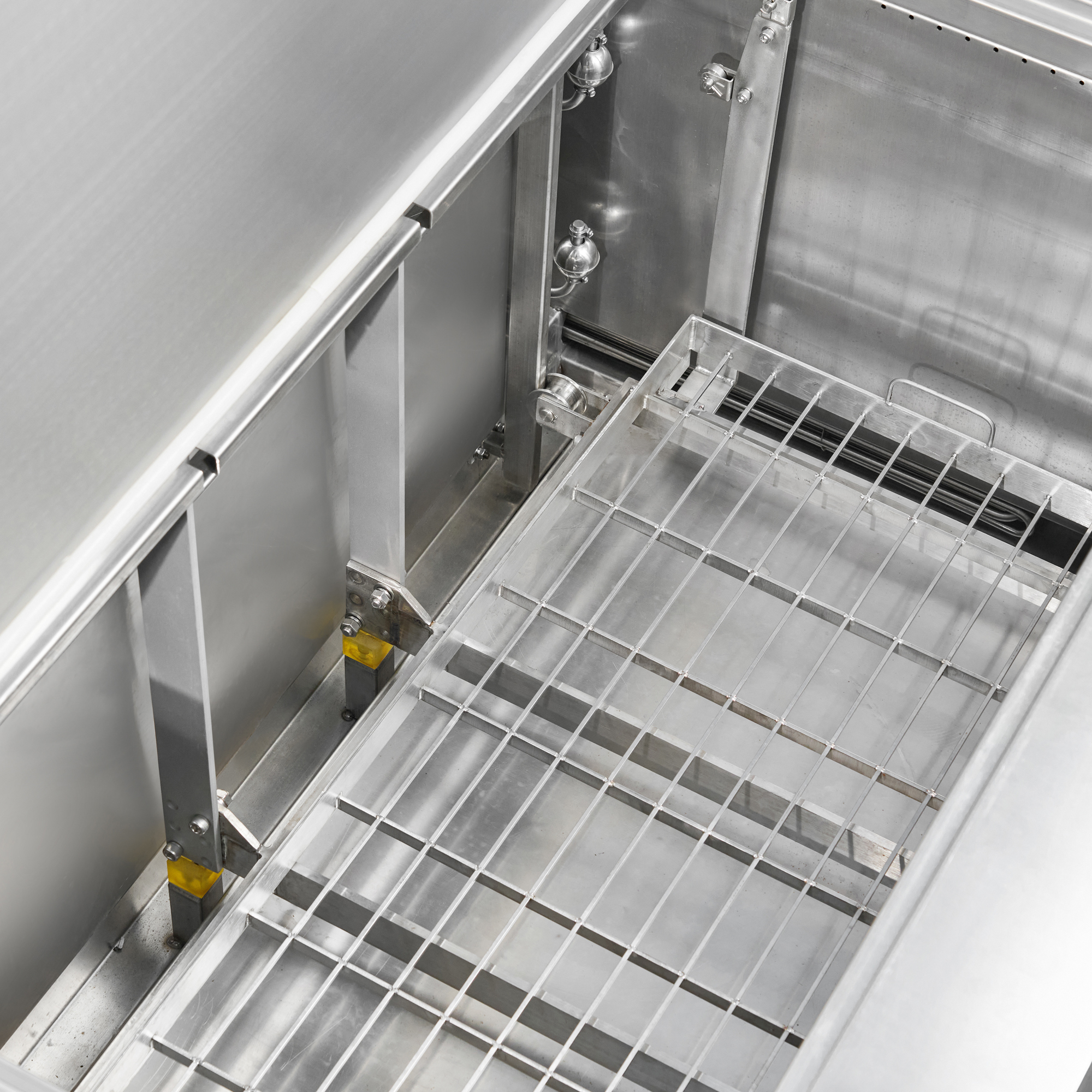

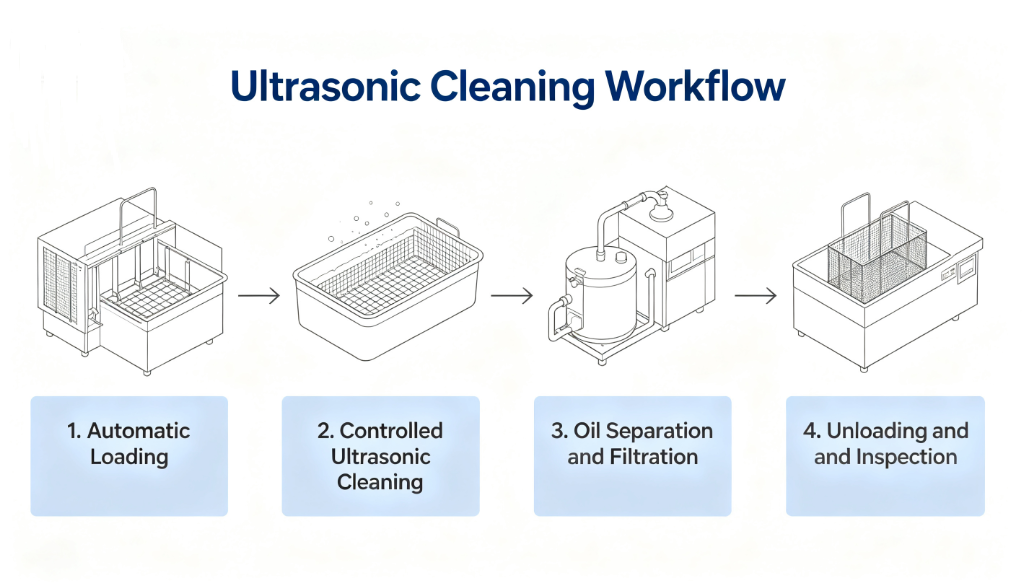

The ultrasonic cleaning system with automatic lift is the core upgrade of the TS-UD Series, designed to eliminate human-induced errors and achieve fully controllable cleaning cycles. The system automates the entire loading, immersion, soaking, and unloading process with fixed parameters, ensuring consistent cavitation action on every workpiece surface.
Key Advantages for Industrial Production
- Stable cleaning consistency: Fixed immersion speed and height maintain uniform ultrasonic energy coverage for all workpieces
- Precision part protection: Smooth mechanical movement avoids collision damage for delicate machined parts and finished molds
- Optimized large-part processing: Solves the core challenge of how to clean large industrial parts with stable, safe operation
- Improve production efficiency: Reduces manual intervention and shortens standardized cleaning cycle time.
Oil Separation System: Sustain Long-Term Cleaning Stability
Persistent oil contamination is a major factor that weakens ultrasonic cleaning performance in continuous production. Residual cutting oil, hydraulic oil, and coolant accumulate in cleaning solutions, attenuating cavitation efficiency and causing secondary pollution.

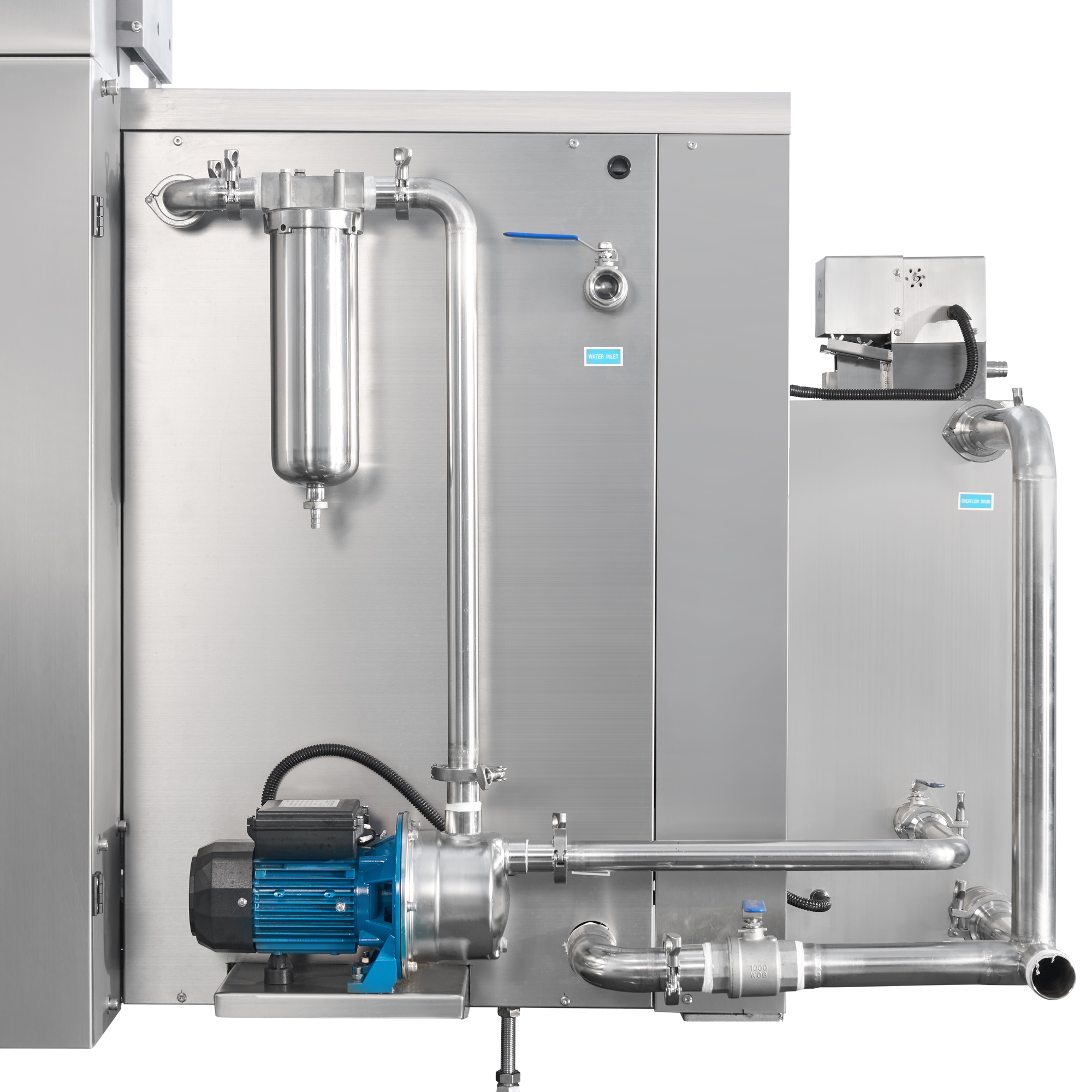

The TS-UD Series equips an optionalultrasonic cleaning machine with oil separation system, which continuously skims floating oil and filters impurities in real time. This design effectively extends cleaning solution service life, reduces chemical replacement costs, and maintains stable contamination removal capability for long-duration batch production.
Main Application Scenarios of TS-UD Heavy Duty Ultrasonic Cleaner
As a professional heavy duty ultrasonic cleaner, the TS-UD Series targets medium and large industrial workpieces, covering core scenarios that require precision parts cleaning and standardized contamination removal.
Automotive Component Cleaning
It thoroughly removes carbon deposits, engine oil, grease, and machining residues from engine blocks, transmission parts, and fuel system components, meeting strict automotive manufacturing cleanliness standards.
CNC Precision Parts Cleaning
The equipment penetrates blind holes, internal threads, and complex structural gaps to eliminate metal chips, coolant residues, and polishing paste, ensuring high-precision part surface cleanliness.
Industrial Mold Cleaning
For injection molds and tooling, it efficiently removes resin residues, release agents, and carbon buildup, reducing manual polishing labor and extending mold service life for reliable mold cleaning results.
Large Part Ultrasonic Cleaning
The matched automatic lift structure and high-power ultrasonic layout support stable large part ultrasonic cleaning for heavy industrial assemblies and oversized mechanical components.
Product Specification：
| Model |
TS-UD100 |
TS-UD200 |
TS-UD300 |
TS-UD600 |
TS-UD800 |
TS-UD1500 |
TS-UD2000 |
| Volume（ltr) |
143 |
265 |
374 |
568 |
896 |
1620 |
2300 |
| Dimension (cm) |
161×105×145 |
188×106×169 |
207×118×169 |
230×136×185 |
250×153×215 |
290×180×260 |
315x190x320 |
| Useful size (cm) |
60×40×30 |
90×40×42 |
110×50×42 |
130×60×48 |
150×70×56 |
180×90×73 |
200×100×90 |
| Max.load capacity （kg) |
40 |
80 |
200 |
300 |
500 |
600 |
700 |
| Ultrasonic power（KW） |
1.2 |
1.8 |
3.0 |
4.8 |
12.0 |
24.0 |
32 |
| Transducer Qty. (pcs) |
26 |
40 |
68 |
96 |
150 |
240 |
400 |
FAQ
1. What is the core value of an automatic lift ultrasonic cleaning system?
It standardizes immersion speed, workpiece positioning, and cleaning cycles, eliminates manual operation errors, and delivers consistent, repeatable cleaning results for precision and heavy industrial parts.
2. Is a heavy duty ultrasonic cleaner necessary for large industrial parts?
Yes. Ordinary small-scale cleaners lack stable energy output and safe loading structures. Professional heavy-duty models support customized power distribution and automatic handling to solve the difficulty of how to clean large industrial parts.
3. Why add an oil separation system to ultrasonic cleaning equipment?
The system removes floating industrial oil in real time, prevents solution deterioration, maintains stable ultrasonic cavitation efficiency, and reduces long-term production and maintenance costs.
4. What industries benefit most from TS-UD series cleaning systems?
It is widely applied in automotive manufacturing, CNC precision machining, mold production, industrial equipment maintenance, and precision component processing industries.
Conclusion
Modern industrial cleaning is no longer a simple decontamination process, but a key link in production process control. The TS-UD Series industrial ultrasonic cleaning machine realizes standardized, efficient, and low-consumption cleaning through automatic lift control and oil separation circulation systems. It provides reliable repeatability and cleaning consistency for manufacturers focusing on precision processing and large-part production, optimizing overall industrial cleaning workflow and long-term operational efficiency.
